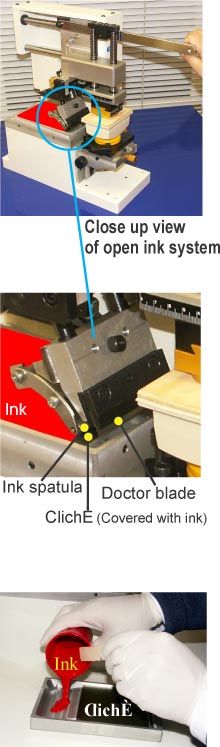

PS-21E is an “Open ink
system” which basically means that the ink is
exposed and covers the entire cliché on the forward
stroke (When printing the product).
On the backward stroke, the “Doctor blade” scrapes
way all the ink back into the ink trough - but an
adequate amount of inks stays in the etched part of
the cliché. It is this ink that is actually picked
up by the pad and stamped onto the product.
Whether you opt for a closed cup or an open ink
systems is really a matter of personal choice. Our
advise for beginners is to opt for closed cup system
as there are indeed many benefits to be gained (see
previous section).
With an open ink system, inks do require thinning
constantly (especially on a hot or humid day) and
this could delay production.
Ink being poured
into the ink trough
PS-21C - Features & Specifications
Features
One hand-operation - therefore faster
production
Sturdy machine / precision engineering
All displacements are limited by “Stop dogs”
Simple and precise adjustments of pad holder
in XYZ coordinates
Simple and precise adjustments and of print
bed in XYZ coordinates
Cliché held by powerful magnets
Light and effortless operation
Virtually maintenance-free
Totally portable
Pressure-stop guides
No electricity required / manual operation
Specifications
Single colour manual pad printing machine -
Closed Cup
Cliché size (Printing plate): 100mm (w) x
100mm (L)
|
|
