Air Operated Pad Printing Machines

• Single colour closed cup system
• Print plate size: 80mm x 150mm
• Ink cup diameter: 55mm
• Printing force 254N (26kg) at 6 bar
• Maximum speed: 2100 cycles per hour
• Compressed air supply: 0.6MPa (6 bar)
• Power supply: 230v/115v 60/50Hz 30W
• Dimensions: 490mm x 260mm x 420mm
• Weight: 18kg

• Single colour closed or open ink system
• Print plate size:100mm x100mm (PS-70 E open ink system) also available as 100mm x 150mm
• Print plate size: 100mm x 200mm (PS-70C closed cup system)
• Ink cup diameter: 70mm (PS-70C closed cup system)

The following applies to both machines:-

• Printing force: 420N (43kg) at 6 bar
• Maximum speed: 1800 cycles per hour
• Compressed air supply: 0.6MPa (6 bar)
• Power supply: 230v/115v 60/50Hz 40W
• Dimensions: 560mm x 330mm x 530mm
• Weight: 35kg

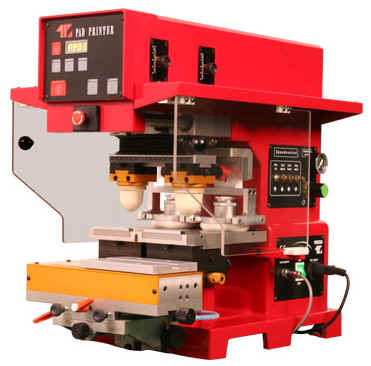

Two Colour Semi-Automatic Pad Printer with Shuttle

Price: £5999.00+VAT
Ink Cup Size: 70mm
Supplied on a Stand  - deduct  £200.00 from above price if no stand required.
Optional Compressor is also required.

Semi-automatic machines are not stock items and are available as special orders. please enquire.
